Sample report

One floor, pinned and double-checked

Level 3 of a 4-story lab building with 2-hour floors (public bid set). 77 items: penetrations of 1- and 2-hour walls, penetrations of the 2-hour floor, and ducts with fire/smoke dampers listed separately as opening protectives. Each one is pinned at the crossing and listed with its rating and what it needs (F, or F and T).

Zoom details PDF Full marked-up sheet · Pin list (CSV)

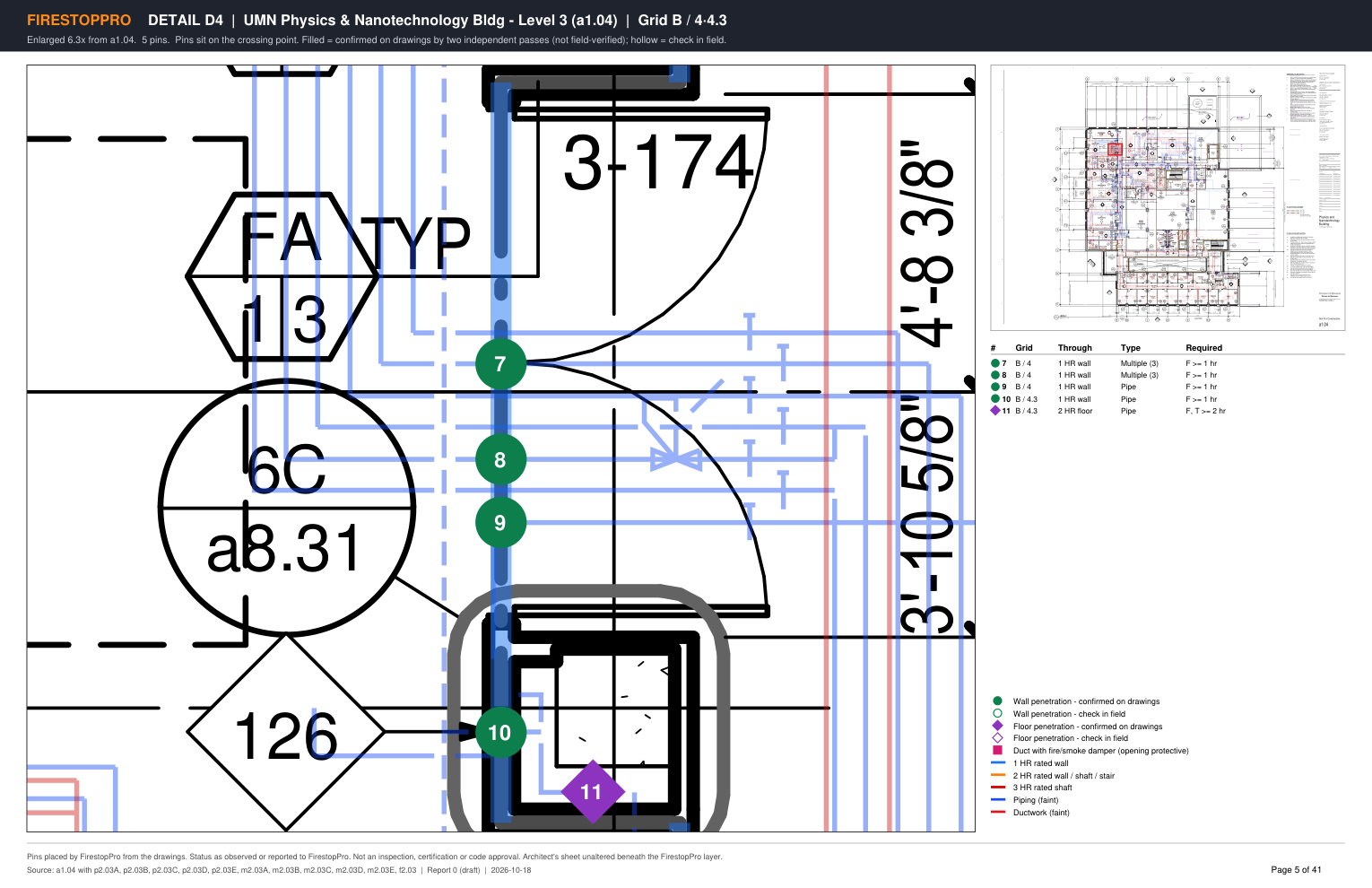

Detail page with numbered pins, rated walls and pin table — A detail page about 15 ft across. Circles: wall penetrations; diamonds: floor penetrations; squares: duct dampers. Filled = confirmed on the drawings; hollow = check in field. Blue = 1-hour wall, orange = 2-hour.

Rated-wall map

Before any pin, we map which walls and floors are fire-rated from your set's own code sheet, life-safety plans and wall types, and send you the open questions. You approve the map; pinning runs against it.

Rated-assembly map (PDF)

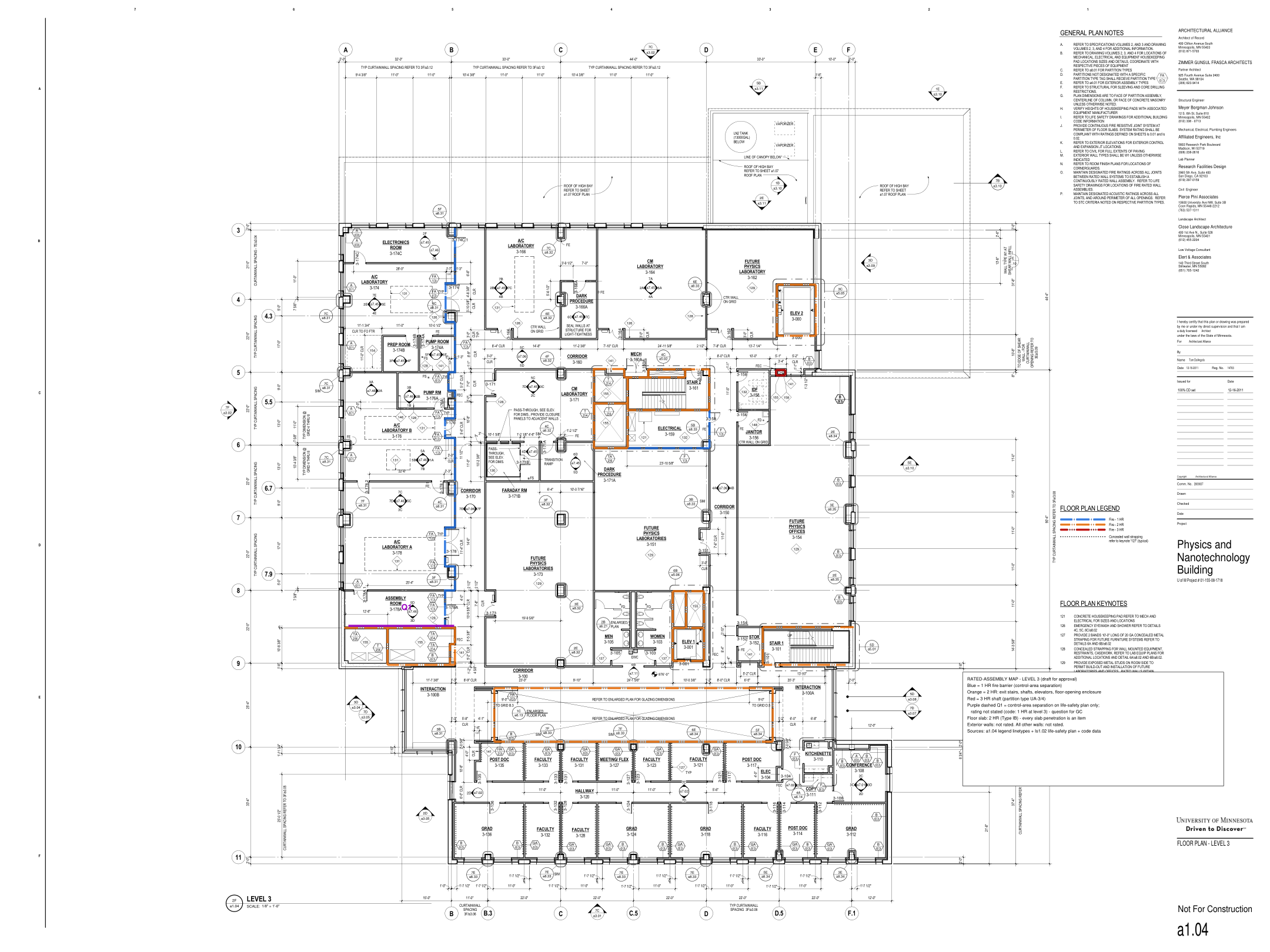

Level 3 floor plan with rated walls colored by rating — The approved map for the same floor: blue 1-hour barrier, orange 2-hour stairs, shafts and elevators, red 3-hour shaft. Every other wall is unrated and gets no pins.

Sources

Publicly posted drawing set, shown for demonstration: University of Minnesota Physics & Nanotechnology Building, architectural and MEP volumes (source).
